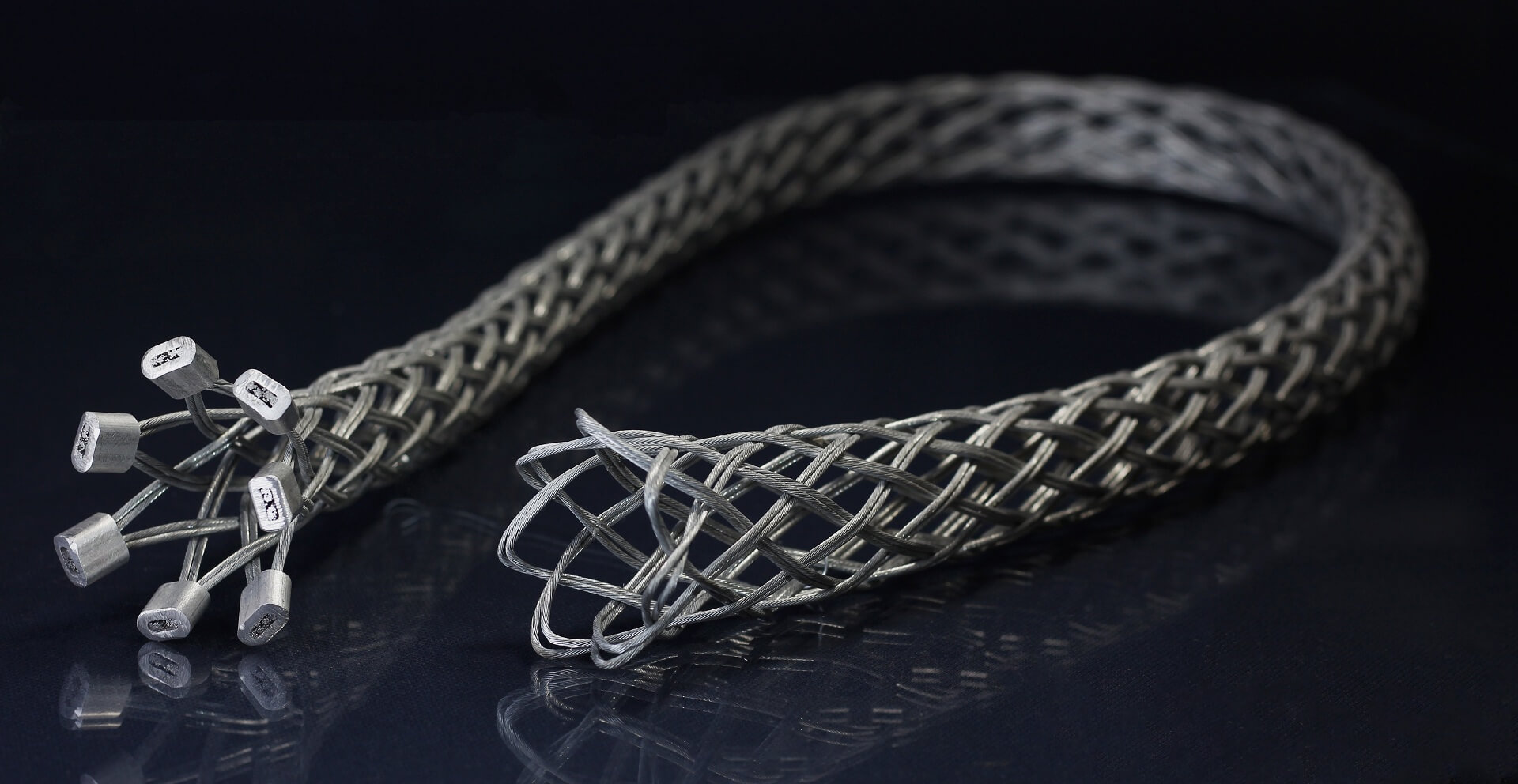

Open Ended Cable Grips are used whenever an offset positioning is needed with the cable completely passing through the cable grip. Specifically, they include any power cables such as LV, MV, HV, or EHV. Open Ended cable grips are most suitable for connecting two cables or ropes with each other for pulling and supporting purposes. The adjoining cables will collectively form a continuous loop. Typical application areas for open-ended cable grips include the replacement of elevator cables wherein the old cable is attached to the new cable to easily fed around the old one. They are also effectively used for any cable laying operations by trench contractors, and for mining operations.
Open-ended joining grips are suitable to connect two cables or ropes for pulling or supporting purposes with each other, in the simplest possible way. These grips are used for the replacement of crane ropes or elevator cables.
| PULLING GRIPS | ||||||
|---|---|---|---|---|---|---|
| OPEN ENDED CABLE PULLING GRIPS | ||||||
| Part No | Cable diameter | Safe Working Load (SF:3) | Mesh length | Total length | ||
| inches | lbs | inches | in inches | |||
| HE 10 | 0.23 – 0.39 | 535 | 39.37 | 39.37 | ||
| HE 15 | 0.39 – 0.59 | 1330 | 59.06 | 59.06 | ||
| HE 20 | 0.59 – 0.78 | 1330 | 59.06 | 59.06 | ||
| HE 25 | 0.78 – 0.98 | 1670 | 78.74 | 78.74 | ||
| HE 30 | 0.98 – 1.18 | 2000 | 78.74 | 78.74 | ||
| HE 40 | 1.18 – 1.57 | 3175 | 78.74 | 78.74 | ||
| HE 50 | 1.57 – 1.96 | 3640 | 78.74 | 78.74 | ||
| HE 60 | 1.96 – 2.36 | 4100 | 98.43 | 98.43 | ||
| HE 70 | 2.36 – 2.75 | 7890 | 98.43 | 98.43 | ||
| HE 90 | 2.75 – 3.54 | 8765 | 98.43 | 98.43 | ||
| HE 110 | 4.33 – 5.11 | 9640 | 98.43 | 98.43 | ||
| PULLING GRIPS | ||||||
|---|---|---|---|---|---|---|
| OPEN ENDED CABLE PULLING GRIPS | ||||||
| Part No | Cable Diameter | Safe Working Load (SF:3) | Mesh length | Total length | ||
| mm | Kg | mm | in mm | |||
| HE 10 | 06 – 10 | 242 | 1000 | 1000 | ||
| HE 15 | 10 – 15 | 603 | 1500 | 1500 | ||
| HE 20 | 15 – 20 | 603 | 1500 | 1500 | ||
| HE 25 | 20 – 25 | 757 | 2000 | 2000 | ||
| HE 30 | 25 – 30 | 907 | 2000 | 2000 | ||
| HE 40 | 30 – 40 | 1440 | 2000 | 2000 | ||
| HE 50 | 40 – 50 | 1651 | 2000 | 2000 | ||
| HE 60 | 50 – 60 | 1860 | 2500 | 2500 | ||
| HE 70 | 60 – 70 | 3580 | 2500 | 2500 | ||
| HE 90 | 70 – 90 | 3975 | 2500 | 2500 | ||
| HE 110 | 90 – 110 | 4372 | 2500 | 2500 | ||
For further details click here to download our Brochure or Contact us.
