Multi Grips or Multiple Cable Pulling Grips, as the name suggests, are used wherever more than one cables need to be pulled at the same time. In other words, with Multi Grips Cable Pulling Grip, 2 or 3 or 4 cord cables can be laid effectively and efficiently at a time.

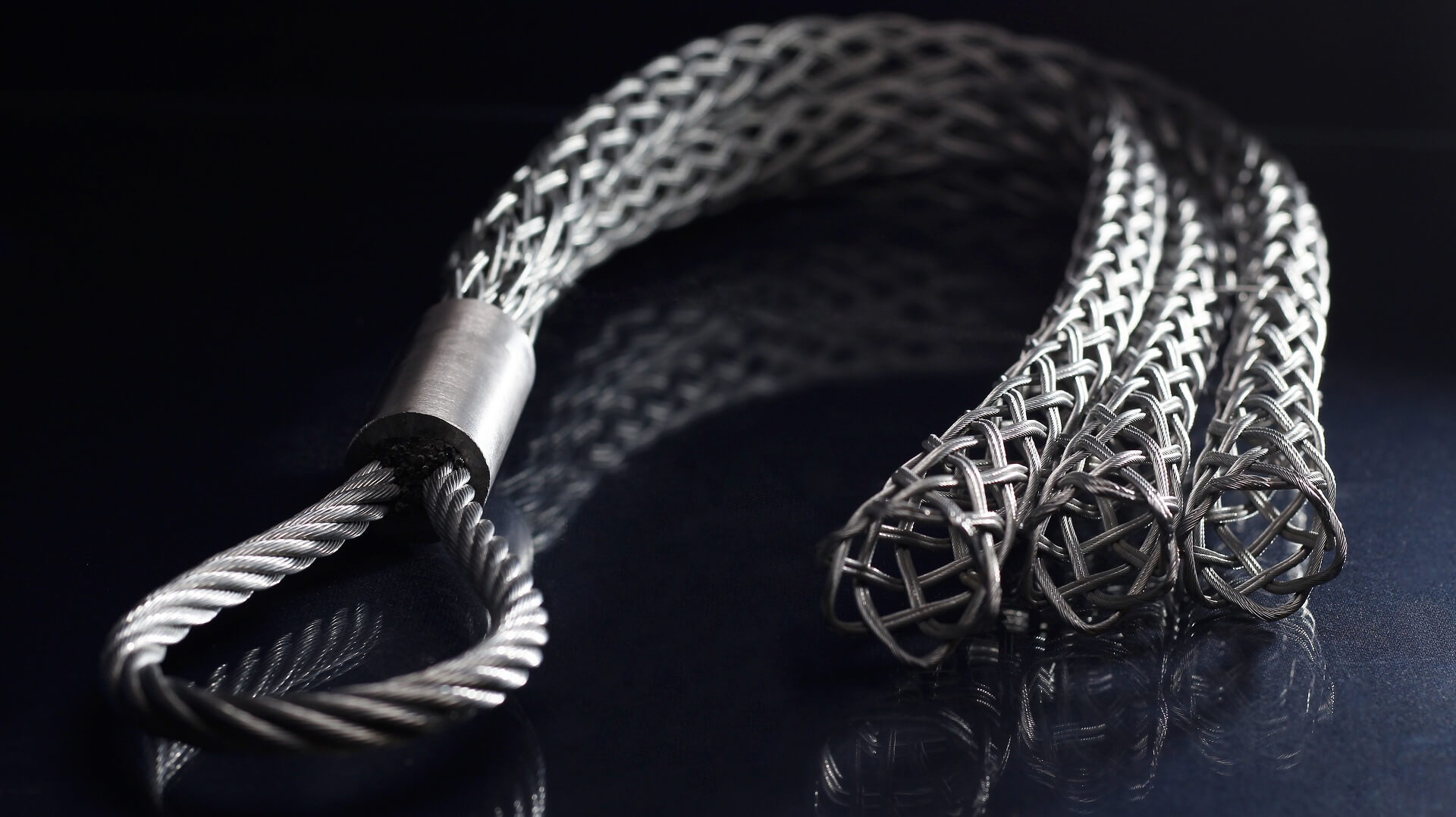

Weaved with double galvanized steel strands, they may be attached to a single soft-pulling eye. Multiple pulling grips can be provided on a 3-in-1 basis wherein 3 cable meshes are assembled into one grip. They come in handy when need to pull multiple cables at once.
| PULLING GRIPS | ||||||
|---|---|---|---|---|---|---|
| MULTI CABLE GRIP - FLEXI/THIMBLE | ||||||
| Part No | Cable diameter | Safe Working Load (SF:3) | Mesh length | Total length | ||
| inches | lbs | inches | in inches | |||
| HMG 20 | 0.59 – 0.78 | 1330 | 39.37 | 45.28 | ||
| HMG 25 | 0.78 – 0.98 | 1670 | 39.37 | 45.28 | ||
| HMG 30 | 0.98 – 1.18 | 2000 | 39.37 | 45.28 | ||
| HMG 40 | 1.18 – 1.57 | 3175 | 49.21 | 55.12 | ||
| HMG 50 | 1.57 – 1.96 | 3640 | 49.21 | 55.12 | ||
| HMG 60 | 1.96 – 2.36 | 4100 | 49.21 | 64.96 | ||
| PULLING GRIPS | ||||||
|---|---|---|---|---|---|---|
| MULTI CABLE GRIP - FLEXI/THIMBLE | ||||||
| Part No | Cable Diameter | Safe Working Load (SF:3) | Mesh length | Total length | ||
| mm | Kg | mm | in mm | |||
| HMG 20 | 15 – 20 | 603 | 1000 | 1150 | ||
| HMG 25 | 20 – 25 | 757 | 1000 | 1150 | ||
| HMG 30 | 25 – 30 | 907 | 1000 | 1150 | ||
| HMG 40 | 30 – 40 | 1440 | 1250 | 1400 | ||
| HMG 50 | 40 – 50 | 1651 | 1250 | 1400 | ||
| HMG 60 | 50 – 60 | 1859 | 1250 | 1650 | ||
For further details click here to download our Brochure or Contact us.
