Standard Cable Pulling Grips provide a protective sheath over cables that facilitates easier installation via ducts, conduits, pipes, or risers. This saves a lot of valuable time and cuts down on cost by facilitating easy installation of standard and multi-fiber cables.
The Cable grips relieve the strain directly onto the outer jacket of the cable while keeping the terminations underneath a protective sheath. Due to this, the terminations do not experience any stress or strain during the process of cable installation. Cable grips can be applied for any cable-laying mechanical operations that involve large traction forces.

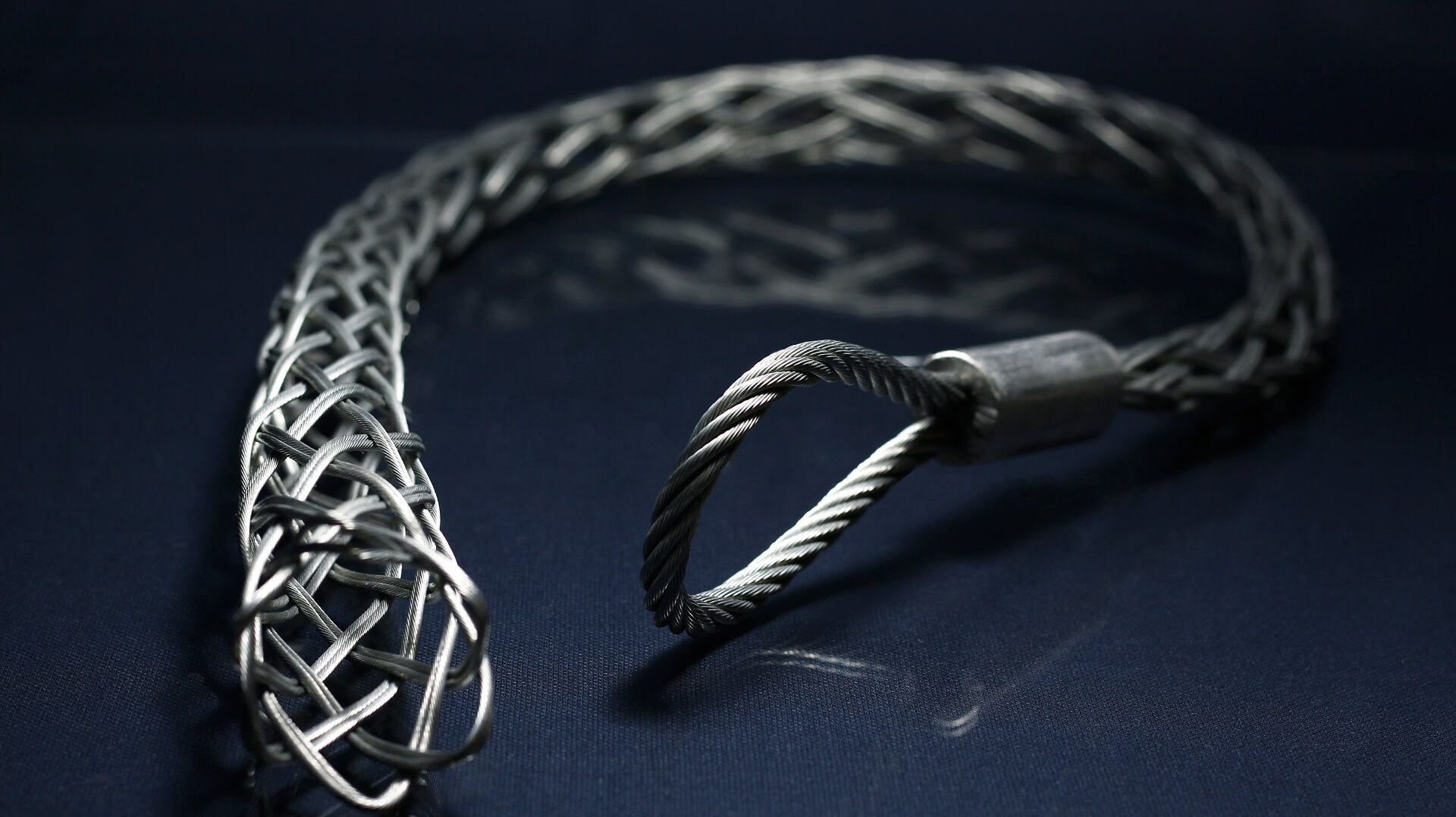

Single Eye Cable Pulling Grips can be effectively used with or without an integrated thimble for any cable laying operations by trench contractors. Single Eye Cable Pulling Grips can be used with a wide spectrum of cylindrical materials ranging from ropes and M.S. Pipes to P.V.C Rigid Pipes during the installation, manufacturing process, or handling operations.
| PULLING GRIPS | ||||||
|---|---|---|---|---|---|---|
| SINGLE EYE CABLE PULLING GRIPS | ||||||
| Part No | Cable diameter | Safe Working Load (SF:3) | Mesh length | Total length | ||
| inches | lbs | inches | in inches | |||
| HEK 10 | 0.23 – 0.39 | 535 | 23.62 | 27.56 | ||
| HEK 15 | 0.39 – 0.59 | 1330 | 23.62 | 27.56 | ||
| HEK 20 | 0.59 – 0.78 | 1330 | 23.62 | 27.56 | ||
| HEK 25 | 0.78 – 0.98 | 1670 | 23.62 | 27.56 | ||
| HEK 30 | 0.98 – 1.18 | 2000 | 49.21 | 53.15 | ||
| HEK 40 | 1.18 – 1.57 | 3175 | 49.21 | 53.15 | ||
| HEK 50 | 1.57 – 1.96 | 3640 | 49.21 | 53.15 | ||
| HEK 60 | 1.96 – 2.36 | 4100 | 59.06 | 62.99 | ||
| HEK 70 | 2.36 – 2.75 | 7890 | 59.06 | 64.96 | ||
| HEK 90 | 2.75 – 3.54 | 8765 | 59.06 | 64.96 | ||
| HEK 110 | 3.54 – 4.33 | 9640 | 59.06 | 64.96 | ||
| HEK 130 | 4.33 – 5.11 | 10520 | 59.06 | 66.93 | ||
| HEK 160 | 5.11– 6.29 | 11390 | 59.06 | 66.93 | ||
| HEK 200 | 6.29 – 7.87 | 15020 | 59.06 | 66.93 | ||
| PULLING GRIPS | ||||||
|---|---|---|---|---|---|---|
| SINGLE EYE CABLE PULLING GRIPS | ||||||
| Part No | Cable Diameter | Safe Working Load (SF:3) | Mesh length | Total length | ||
| mm | Kg | mm | in mm | |||
| HEK 10 | 06 – 10 | 242 | 600 | 700 | ||
| HEK 15 | 10 – 15 | 242 | 600 | 700 | ||
| HEK 20 | 15 – 20 | 603 | 600 | 700 | ||
| HEK 25 | 20 – 25 | 757 | 600 | 700 | ||
| HEK 30 | 25 – 30 | 907 | 1250 | 1350 | ||
| HEK 40 | 30 – 40 | 1440 | 1250 | 1350 | ||
| HEK 50 | 40 – 50 | 1651 | 1250 | 1350 | ||
| HEK 60 | 50 – 60 | 1859 | 1500 | 1600 | ||
| HEK 70 | 60 – 70 | 3579 | 1500 | 1650 | ||
| HEK 90 | 70 – 90 | 3975 | 1500 | 1650 | ||
| HEK 110 | 90 – 110 | 4372 | 1500 | 1650 | ||
| HEK 130 | 110 – 130 | 4772 | 1500 | 1700 | ||
| HEK 160 | 130 – 160 | 5164 | 1500 | 1700 | ||
| HEK 200 | 160 – 200 | 6813 | 1500 | 1700 | ||
For further details click here to download our Brochure or Contact us.
